3.5inch 320*480 IPS TFT LCD Display
Model No.: HYS-035BC1S6P001
- Size: 3.5″ Diagonal | 320*480 pixels
- Display Type: IPS
- Touchscreen: None
- Interface: RGB
- Controller/Driver: ST7365P
- Resources: Specifications PDF file download
This 3.5″ IPS display is ideal for industrial handheld devices, smart meters, medical equipment, and home automation systems requiring reliable performance, compact size, and excellent viewing angles.
Modify this display
Get custom design and manufacturing tailored for your project. Get your free quote now.
Specifications
| Size | 3.5" Diagonal |
| Resolution | 320*480 pixels |
| Display Type | IPS |
| Touchscreen | None |
| Brightness(cd/m²) | 200-600 customizable |
| Interface | RGB |
| TFT driver IC | ST7365P |

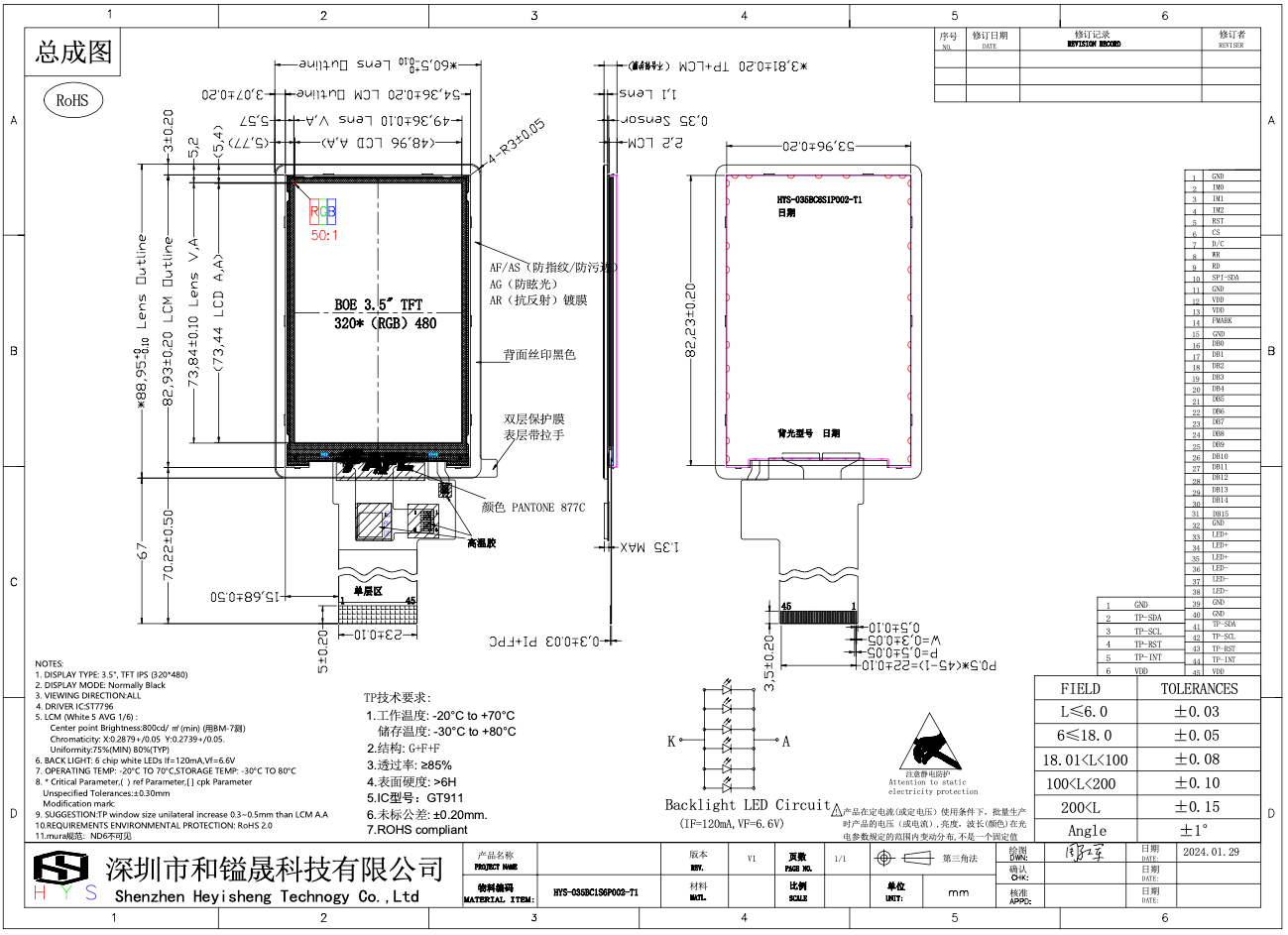

| Outline L*W*H(mm) | 54.36*82.93*2.2 |
| Active Area L*W(mm) | 48.96*73.44 |
| Operation Temperature | —20℃---70℃ |
| Storage Temperature | —30℃---80℃ |
Custom Solutions
Touch Screen Add-on
We can offer capacitive touchscreens as optional choice to enhance your user experience. The glass thickness, shape of TP can be tailored to meet your specific request.
LCD Cable Customization
Flexible printed circuits can be customized in shape, length, and pinout to simplify integration and improve your device reliability.
Cover Glass
Customize your display with durable cover glass or acrylic panels for enhanced protection, optical clarity, and premium appearance. Special surface treatment is also available (Anti-Glare/Anti-Fingerprint/Anti-Bacterial/Anti-UV/Ceramic)
Higher Brightness
We can customize display brightness to meet your needs to ensure excellent visibility even in outdoor or high-light environments.
Mounting Bracket
Custom mounting brackets are available to streamline installation, ensure secure attachment, and support your mechanical design requirements.
